510 sqm Scaffolding by Plettac Assco – steel frames & timber decks

Manufacturer: Plettac
Article number: EN-S2220
Quantity 510 sq m
Weight 6.181 kg

On request + VAT


Cetrac GmbH

office: +49 341 30848 90-0



Scaffolding by Plettac Assco – 510 sqm incl. steel frames & timber decks

  • frame scaffolding made in germany
  • timber decks 2,50 m
  • galvanized steel
  • used but good condition
  • easy to erect and dismantle
  • for facades & construction
  • additional parts on request
  • worldwide shipping
  • on stock

Further details

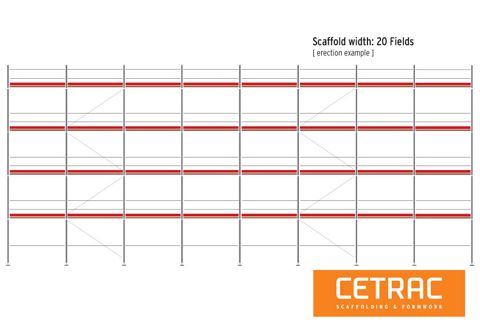

Length of scaffolding50,00 m
Max. working height10,20 m
Max. standing height8,20 m
Field length/scaffolding depth:2,50 m / 0,74 m

Included parts

Quantity Article description

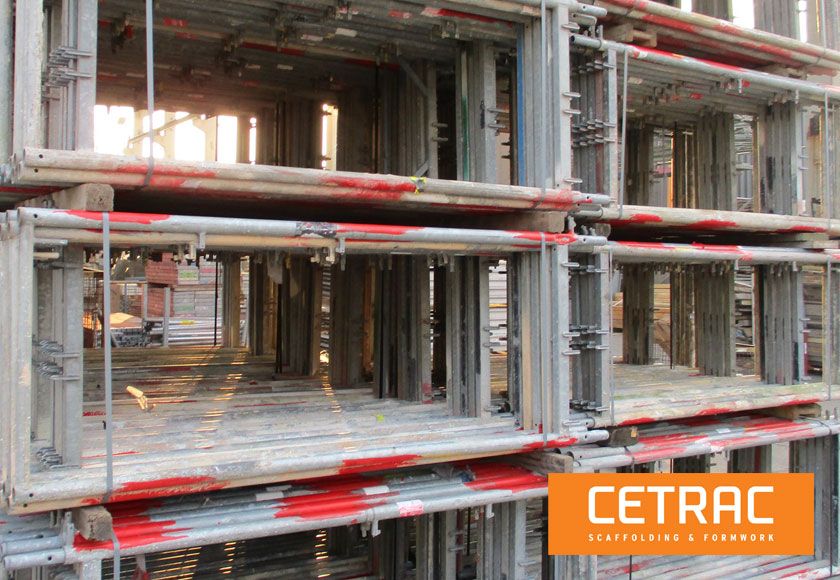

84 Steel-Vertical Frame SL W74 200 x 74

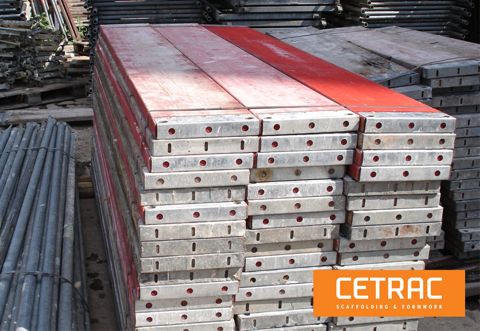

168 Timber Deck SL W32 250 x 32 x 4,4

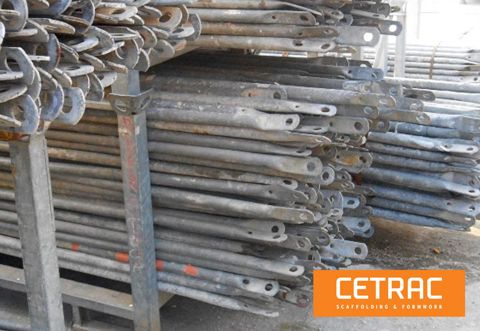

180 Guard rails SL 250
8 Double end guard rail SL 74
16 Diagonal SL 326 (250 x 200)

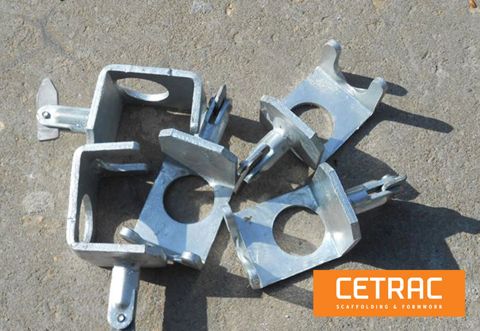

4 Diagonal Fixing Bracket SL
21 Steel Guard Rail Post SL 100x 74
80 Toe boards SL 250

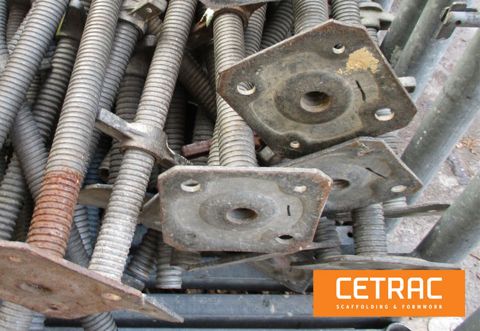

42 Base plate 60
22 Wall tie 30 - 65
22 Double coupler

For further infomation, shipping or additional parts use our eMail-service please.

    By submitting this form, I agree to the privacy policy.



    Assambling

    The components can be assembled quickly and easily: Put two vertical frames on two scaffold feet. Now connect the vertical frames with at least one back railing. Now align the scaffold field vertically with a diagonal. To do this, simply slide the ends of the diagonals over the tilt fingers on the outside of the vertical frame. With the Plettac-SL scaffolding, this requires diagonal fastening in the lowest diagonal field. Finally, hang one and then a second wooden floor over the pins on the upper ends of the two vertical frames. How to continue with the other scaffolding fields. You can either block the diagonals one above the other in a tower; alternatively, you can distribute them diagonally in adjacent fields over the scaffold. Plettac wooden floors can be used on both sides and are easy to clean after use.

    Subject to errors and prior sale.
