918 sqm Plettac SL incl. Aluminum frames & combi decks – Scaffolding by Assco
- Aluminum frames 200 x 74
- Combi decks – aluminum frames & ALU surface
- lightweight components – easy to handle
- used in good condition
- shipping worldwide
- buy´n´build ready
The offer is an example and can be changed according to your needs. We will make you an individual offer.
|Length of scaffolding||90,00 m|
|Max. working height||10,20 m|
|Max. standing height||8,20 m|
|Field length/scaffolding depth:||3,00 m / 0,74 m|

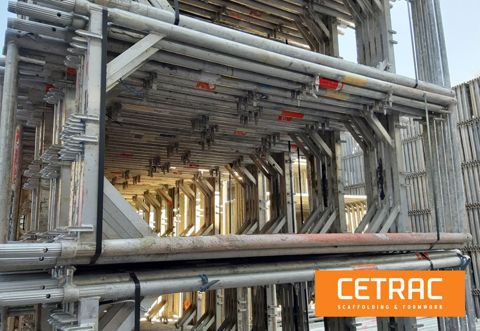

|124||Alu-Vertical Frame SL W74 200 x 74|

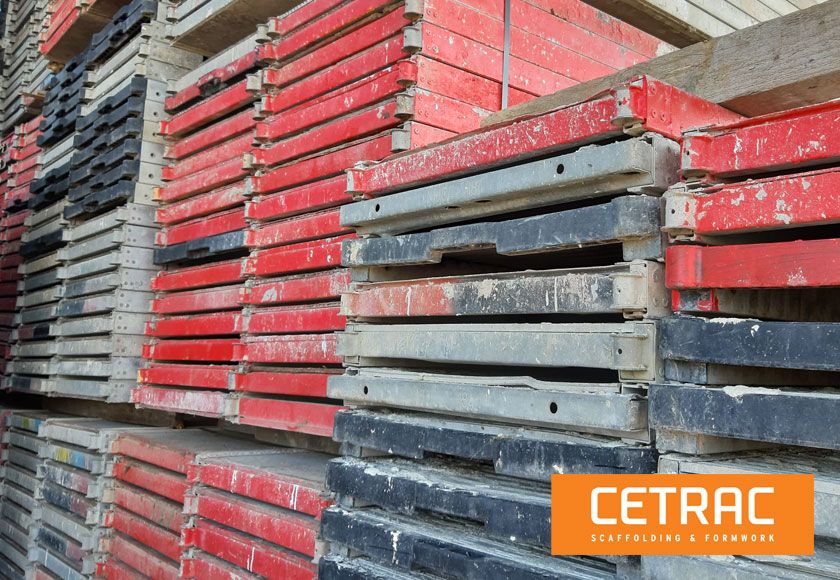

|120||Alu Frame Deck SL W64 w. Alu Surface 300 x 64|

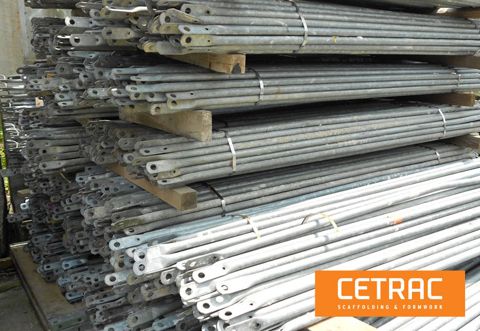

|270||Guard rails SL 300|
|8||Double End Guard Rail SL74|
|24||Diagonal brace SL 366|
|6||Diagonal Fixing Bracket SL|

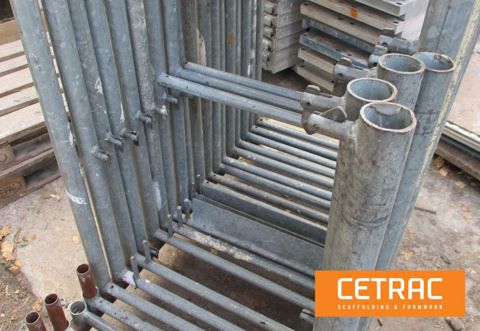

|31||Guard Rail Post SL 100 x 74|
|120||Toe board SL 300|

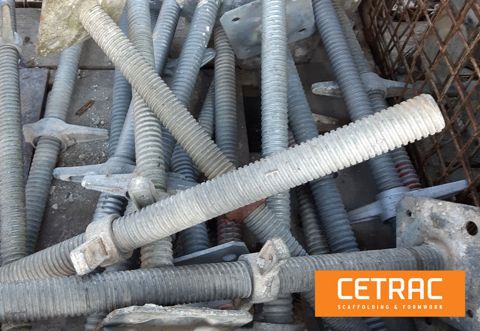

|62||Base plate 60|
For further infomation, shipping or additional parts use our eMail-service please.
How to erect the SL scaffolding system
The components can be assembled quickly and easily: Put two vertical frames on two base plates. Now connect the vertical frames with at least one back railing. Now align the scaffold field vertically with a diagonal. To do this, simply slide the ends of the diagonals over the tilt fingers on the outside of the vertical frame. With the Plettac Assco SL scaffolding, this requires diagonal fastening in the lowest diagonal field. Finally, hang the aluminum frame board over the pins at the upper ends of the two vertical frames. How to continue with the other scaffolding fields. You can either block the diagonals one above the other in a tower; alternatively, you can distribute them diagonally in adjacent fields over the scaffold.
Subject to errors and prior sale.
