Bulk lot · whole lot onlyArt. no. GP-LAYHER-BA-8556

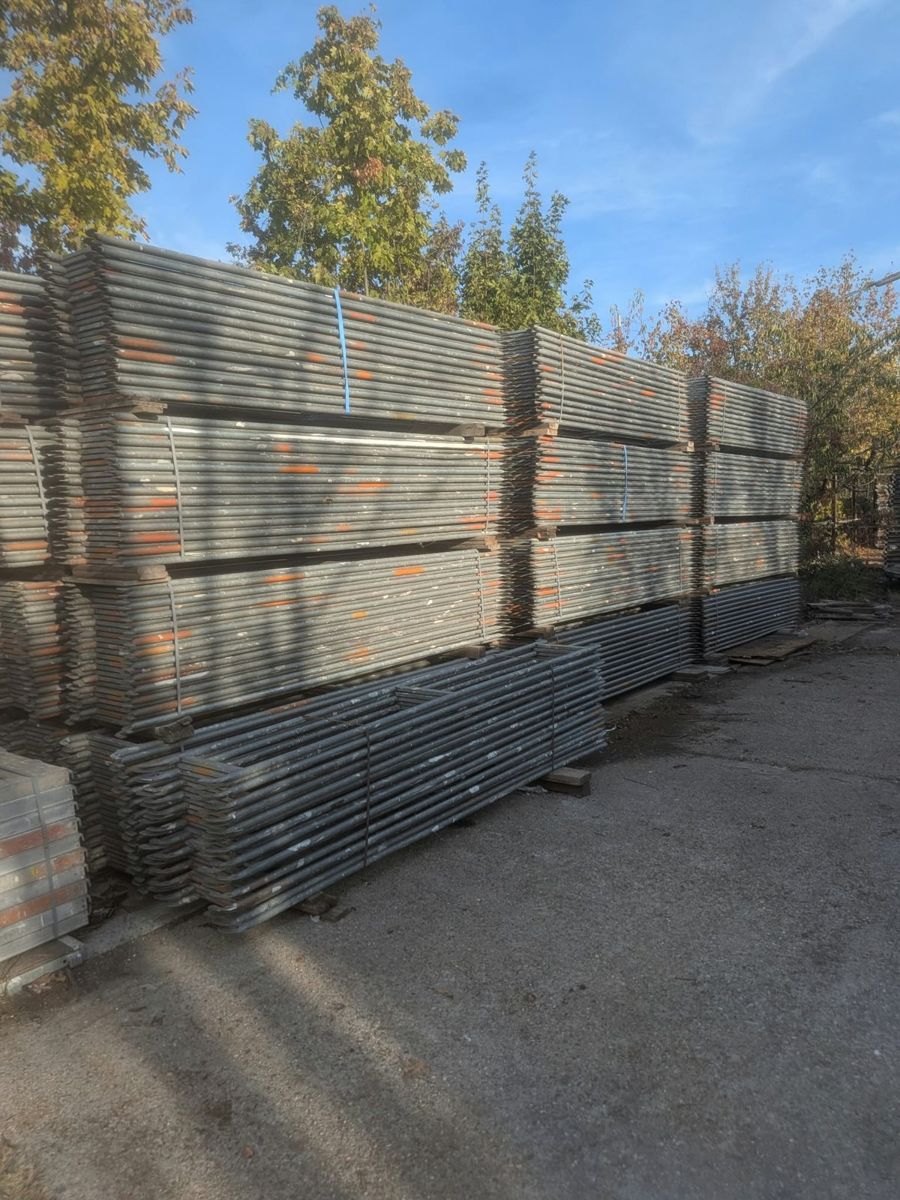

Layher Blitz and Allround scaffolding – complete bulk lot of 8,556 pieces with accessories

Name: Layher Blitz and Allround scaffolding – complete bulk lot of 8,556 pieces with accessories
SKU: GP-LAYHER-BA-8556
Price: 131780.80 EUR
Availability: InStock

A complete lot of used Layher Blitz (frame) and Allround (modular) scaffolding with accessories, 8,556 pieces sold as one lot at 25 % of the Layher list price.

€131,780.80plus VAT, ex works Leipzig · whole lot only · subject to prior sale

Arrange an inspection +49 341 3084890-0

Article number

GP-LAYHER-BA-8556

System

Layher

Quantity

8,556 pieces

Weight

approx. 64,581 kg

Condition

used

Location

Leipzig, Germany

Sale

whole lot only

What the lot contains

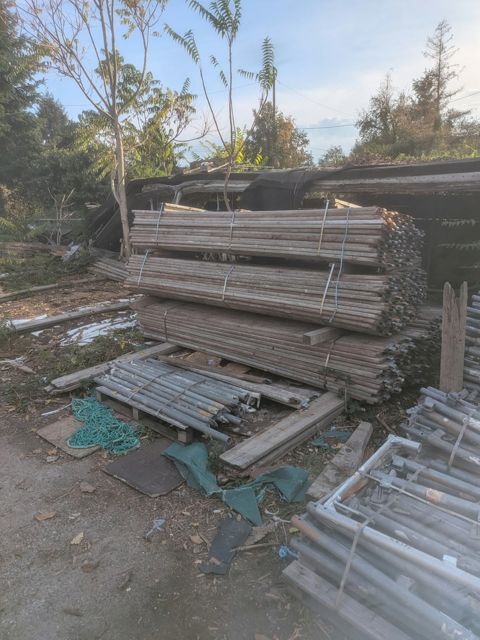

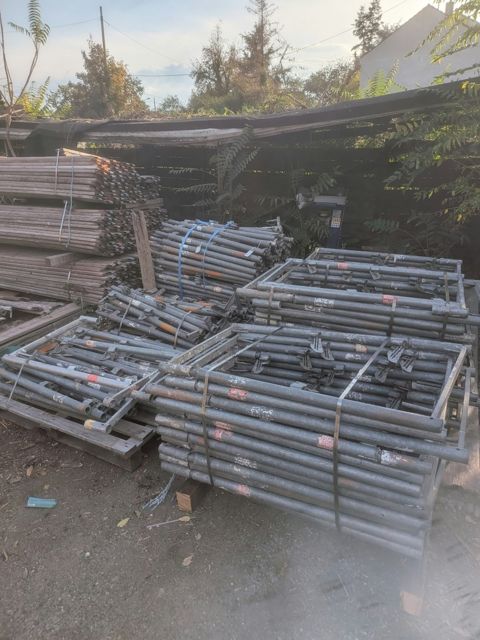

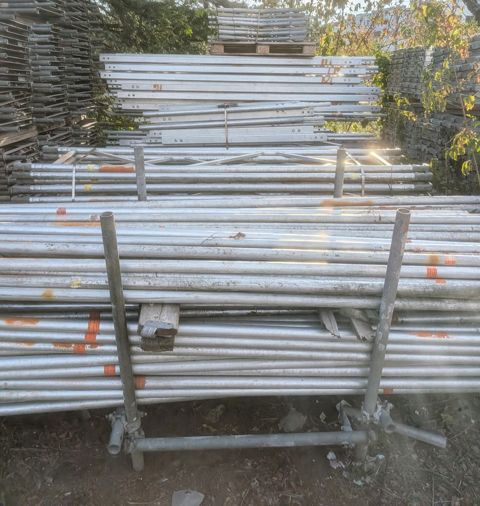

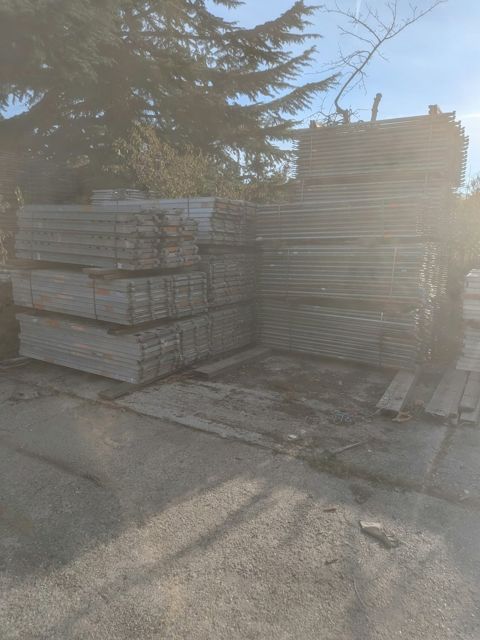

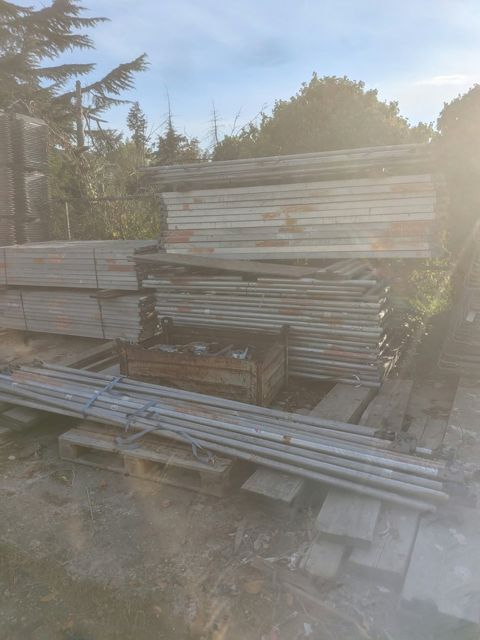

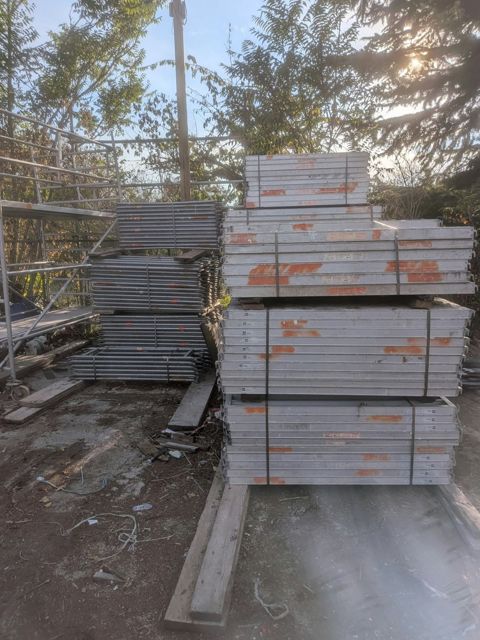

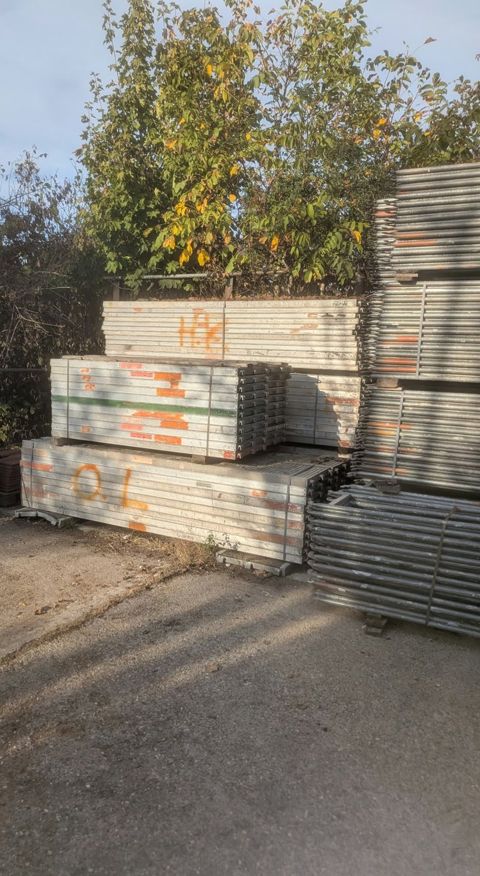

132 items, 8,556 pieces. Most of it is Layher Blitz façade scaffolding: 1,653 double guardrails, 498 brackets, 554 toe boards, steel, robust and steel-aluminium decks, access decks and 494 base jacks – plus Allround components, 1,165 scaffold tubes and 2,355 couplers.

Also included: lattice girders, stairways, mobile tower parts, a complete keder roof and site fencing. The full list is below; the parts with a known unit weight come to about 64.6 tonnes.

Price

25 % of the current Layher list price (residual value): list value €527,123.21, price for the lot €131,780.80 net, for the whole lot only.

Used, sold as seen; inspection by appointment. Delivery dates by agreement, payment in advance.

Parts list

Quantity	Description
10	Steel access ladder 3.00 × 0.43 m, 12 rungs
3	Aluminium walkway 6.15 × 0.60 m
8	Castor wheel, permissible load 7 kN
82	Single guardrail post 1.00 m for 0.36 m bracket, steel
30	Eaves bracket 1.00 m
136	Double guardrail, steel, 1.57 m
266	Double guardrail, steel, 2.07 m
1,225	Double guardrail, steel, 3.07 m
21	Double guardrail, steel, 4.14 m
335	Guardrail coupler
20	Gusset plate coupler, 19 mm spanner
101	Transverse diagonal 0.73 m with 2 half couplers, 19 mm spanner
26	Transom 0.73 m, 19 mm spanner
309	Bracket 0.36 m without spigot, with lift-off guard, 19 mm spanner
17	Bracket 0.50 m, 19 mm spanner
35	Bracket 1.09 m, 19 mm spanner
17	Plug-in bracket 0.36 m without spigot
16	U base ledger 0.73 m
10	Stair return guardrail, 19 mm spanner
5	Stair guardrail 3.07 m for 2.00 m lift height
5	U platform stairway, aluminium 3.07 × 0.64 m for 2.00 m lift height
45	Wall tie 0.38 m
40	Wall tie 0.69 m
18	Wall tie 0.95 m
1	End toe board 0.73 × 0.15 m
14	End toe board 1.09 × 0.15 m
363	Side toe board 3.07 × 0.15 m
11	Side toe board 4.14 × 0.15 m
2	Aluminium double ledger 3.07 m
4	Steel lattice girder 5.14 × 0.45 m
5	Steel lattice girder 6.14 × 0.45 m
5	O ledger, steel, 0.73 m
2	O ledger, steel, 1.09 m
1	O ledger, steel, 2.07 m
1	O ledger, steel, 2.57 m
3	O ledger, steel, 3.07 m
3	Base collar, steel
1	Clamp-on rosette, 19 mm spanner
5	U support ledger 0.73 m
1	Steel standard 1.00 m with spigot
1	Steel standard 2.00 m with spigot
4	Steel standard 3.00 m with spigot
1	U stair head element 0.60 m
2	Stair middle element 0.60 m
1	Stair base element 0.60 m
1	Vertical diagonal, steel, for 3.07 m bay, 2.00 m lift height
1	U steel deck 2.07 × 0.19 m
1	U steel deck 3.07 × 0.19 m
48	U robust deck 1.57 × 0.61 m
10	U robust deck 2.07 × 0.61 m

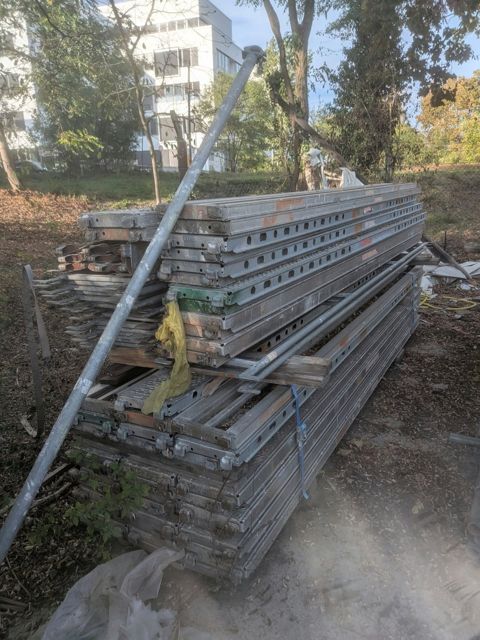

23	U aluminium access deck 2.07 × 0.61 m without ladder
20	U aluminium access deck 3.07 × 0.61 m without ladder
2	U aluminium access deck 2.57 × 0.61 m with ladder
50	U aluminium access deck 3.07 × 0.61 m with ladder
1	Steel plank 1.50 × 0.30 m (non-system)

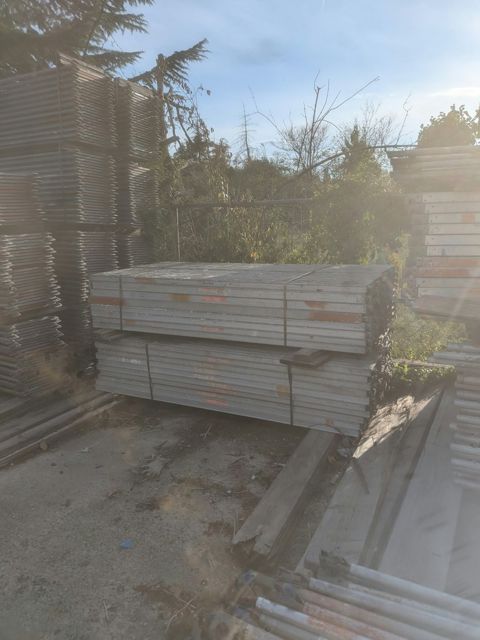

78	U steel deck 2.07 × 0.32 m
96	U steel deck 3.07 × 0.32 m
7	U steel deck 4.14 × 0.32 m
147	U steel-aluminium deck 1.57 × 0.61 m
130	U steel-aluminium deck 2.07 × 0.61 m
37	U steel-aluminium deck 2.57 × 0.61 m
12	U steel-aluminium deck 3.07 × 0.61 m
150	Red gravity pin, 11 mm

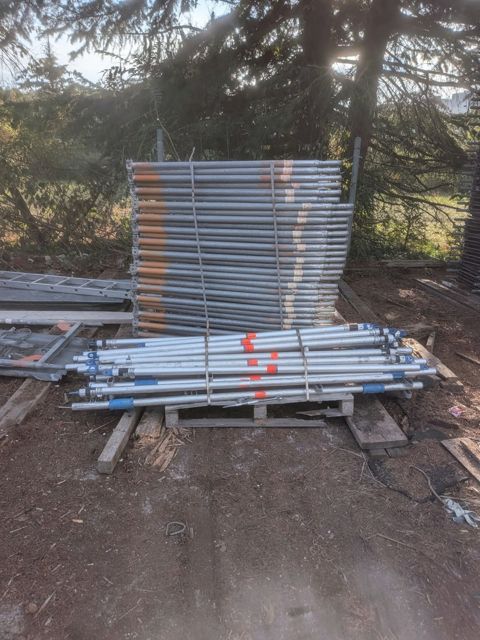

467	Base jack 0.60 m
7	Heavy-duty base jack 0.80 m
16	Swivel heavy-duty base jack 0.60 m
3	U bracket 0.36 m with 2 hooks
74	Steel internal ladder 2.15 × 0.35 m, 7 rungs
70	Guardrail post

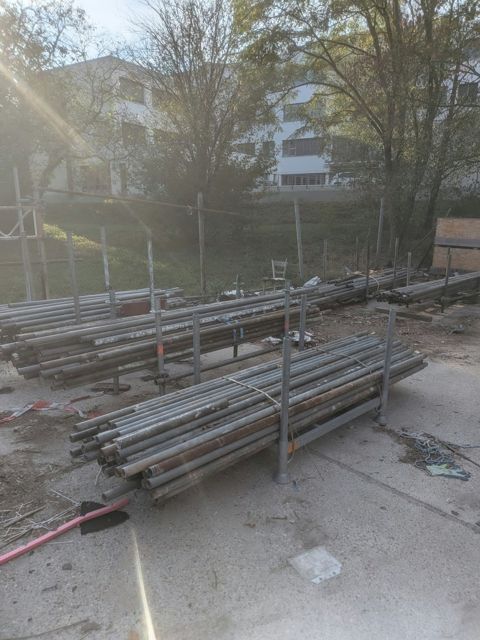

145	Steel scaffold tube 0.50 m
40	Steel scaffold tube 1.00 m
144	Steel scaffold tube 1.50 m
71	Steel scaffold tube 2.00 m
118	Steel scaffold tube 2.50 m
291	Steel scaffold tube 3.00 m
203	Steel scaffold tube 4.00 m
51	Steel scaffold tube 5.00 m
73	Steel scaffold tube 6.00 m
7	Aluminium scaffold tube 3.00 m
6	Aluminium scaffold tube 6.00 m
1,223	Right-angle coupler, 19 mm spanner
148	Swivel coupler, 19 mm spanner
15	Sleeve coupler, 19 mm spanner
165	Half coupler with toe-board bolt, 19 mm spanner
70	Timber coupler, 19 mm spanner
24	Lattice girder coupler, 19 mm spanner
230	Reducing right-angle coupler 48.3/33.7 mm, 19 mm spanner
14	Aluminium lattice girder 4.25 × 0.45 m
4	Lattice girder connector 0.40 m, straight
4	U ledger for lattice girder 0.73 m
5	Steel system lattice girder 3.25 m, 45 cm high
1	Steel system lattice girder 4.25 m, 45 cm high
16	Steel system lattice girder 6.32 m, 45 cm high
2	Tube pallet 1.37 × 0.97 m
4	Solid fork-head jack, opening 8.5/17 cm
50	Side protection net 2.00 × 10.00 m with quick-release strap
2	Adjustment frame 1.00 × 1.09 m
51	Steel passage frame 2.20 × 1.50 m
40	Steel frame 2.00 m for parapet
41	U aluminium deck 4.14 × 0.32 m
1	Guardrail, steel, 4.14 m
79	Guardrail post 0.73 m, steel
5	Aluminium roof bracket
2	Aluminium system lattice girder 6.32 m, 45 cm high
33	Lattice girder connector
16	Aluminium scaffold tube 1.50 m
35	Bolt 14 × 77 mm
24	Clamp coupler
1	Aluminium lean-to ladder 6 m
1	Aluminium extension ladder 9 m
11	Assembly post
10	Aluminium assembly guardrail, telescopic 2.07/3.07 m
6	Safety net 10 × 5 m (EN 1263-1)
4	Safety net 10 × 10 m (EN 1263-1)
12	Mobile tower ladder frame 2.00 m, 8 rungs
6	Mobile tower ladder frame 1.00 m, 4 rungs
6	Mobile tower platform 2.85 m
5	Mobile tower hatch platform 2.85 m
5	Mobile tower double guardrail 2.85 m
15	Mobile tower guardrail 2.85 m
9	Mobile tower diagonal 3.35 m
14	Keder roof eaves section 2.00 × 0.78 m
8	Keder roof ridge section 18°
12	Swivel roof support 0.73 m
26	Keder roof stiffener 2.57 × 0.55 m
44	Keder roof horizontal brace 2.57 × 1.00 m
28	Keder roof lattice girder 3.00 m
7	Keder roof lattice girder 1.50 m
99	Keder roof ledger 2.57 m

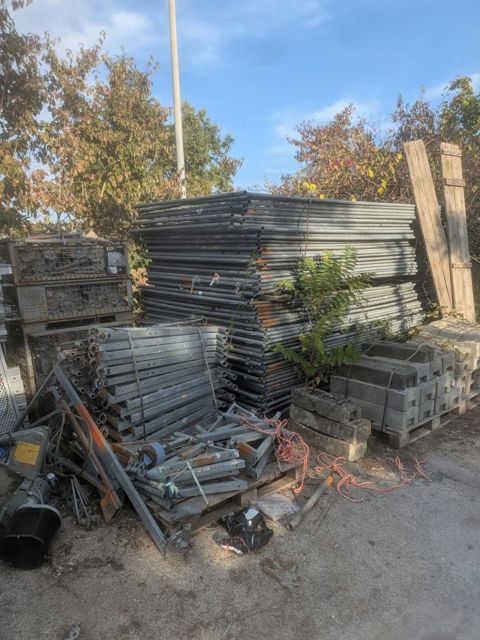

40	Concrete site-fence base
55	Site fence panel 3.50 × 2.00 m
17	Ballast sign
